Background:

So in December (2014), a product manager came to my boss and asked if he had anyone who could produce a companion application on a Window's phone for the Kiosk project we had done the previous summer for Open Commerce our sister company. This was to be a demonstration application and would get a lot of Microsoft attention as it was in line with the Internet of Things initiative that was getting a big push. Well we didn't have any staff that had experience with writing Windows Phone applications, so we looked into outside groups to get the project done. As it turns out there isn't a lot of companies or people for that matter who want to do a Windows Phone application for nearly free just for the experience and exposure.

Summary:

Open Commerce wanted to create and application that would share data from the Winning With Produce (WWP) kiosk and the phone. Basically push recipes from the kiosk where thousands were stored to the phone then be able to create a shopping list from the ingredients required for a given recipe. Also the shopping list could be pushed from the phone to the printer on the kiosk for those old school shoppers who want a paper shopping list. One piece of the puzzle was to have the phone user "check in" with the kiosk, this was done through QR code displayed on the kiosks main page. Once the user had checked in they could navigate around the kiosk for recipes and for "Favorite" produce. And either of these entities could be pushed to the phone. Long story short we needed to store data on the phone because it wouldn't always be connected to the kiosk to pull data, and once disconnected from the kiosk it was very probable that the user would close the app or even reboot the phone. Data needed to persist across these events by being stored locally.

Prerequisites:

Windows 8.1 OS

Visual Studio 2012/2013 Professional

Basic Requirements:

One of the things I've always done in my development is try to keep the applications as simple as possible. Maybe it is due to my background in mechanical engineering and physical processes, but I try to have as few moving pieces as possible and for those pieces to be responsible for doing one thing and only one thing (Separation of Concerns Pattern).

Therefore to break this project down we needed just a few things:

A way to show data
A way to store data
Two way transport data from kiosk to phone
How to navigate fro page to page
Read a QR code

Some things we had to do, but were not specific to this project, just Windows Phone Development

Register for a Windows Developer license
Register a specific phone for development, also called side loading, limited to 3 devices per developer
Phone Emulation Virtual Machine Installation
Windows 8.1 required as a development platform for Phone emulation and development

Windows 8 can be used to develop phone applications, but emulation is only supported on Windows 8.1 or higher

Premise:

The reason for writing this white paper is to bring together an example that actually shows how to develop a Win8 Phone that does something real world. I was amazed when looking for "getting started" examples that fell short in one way or another of doing something useful. In software development there are basically only a handful of things we do:

Display data on a screen

Typically requires retrieving data from a persistence layer

Save data to a persistence layer
Manipulating the data on the screen
Navigating from screen to screen

This whitepaper intends to give a simple but solid example of all these tasks.

Displaying Data on the screen:

This one is taken care of for us, either of the two out of the box Windows Phone 8 projects you pick will display data on the screen. Now obviously the "Windows Phone Databound App" gives a good head start with this task.

So Microsoft gives us this template with working code to that creates this interface:

The code generated displays this XML as an example, MainViewModelSampleData.xml

Excerpt:

Two concepts need to be understood to grasp what is happening behind the scenes:

Data Binding
Navigation

Let's start with data binding. This is a relatively simple concept, where instead of "wiring up" a control to each and every field with code, we simply use a short hand to tell the control, in this case a Phone control called a Long List Selector what object to bind to and what fields to display.

In this case we are setting the pages DataContext to an instance of a View Model, App.ViewModel, which is specifically defined in the App.xaml.cs file (a special file that is always in context for every page of the application).

The rest of the magic happens in the MainPage.xaml where we tell the page what to show from the entity we are bound to above.

This snippet shows the UI binding to the Text Blocks:

So we see here that we are binding the LongListSelector named MainLongListSelector, to the Items object. This object happens to be an ObservableCollection of ItemViewModel objects defined here:

public ObservableCollection Items { get; private set; }

in the MainViewModel.cs

Now, right here I want to remind the readers that I have not coded a single line of code, this is all code that is straight out of the box and all I did to get it was to select the "Windows Phone Data Bound App" template and create a new project.

Ok, so in our UI we have the LongListSelector bound to an Items variable. Notice that the LongListSelector is a parent of two TextBlocks. These two TextBlocks are also data bound, one to a LineOne field and one to a LineTwo field in the ItemViewModel object. These are public child fields to the Items class and therefore follow the hierarchy in the UI as it matches the hierarchy of the objects.

So you might ask, where did this data come from. Well you might be tempted to think it comes from here:

You would be wrong though, this is a handy tool, but it isn't used at runtime (at least not out of the box). This data is used to populate the layout designers

Notice that when run it says "runtime one" instead of "design one"

So where does it really come from, a quick search shows it comes from ~/ViewModels/MainViewModel.cs in the LoadData function. This function gets called from the MainPage.xaml.cs when the app "Navigates To" the main page. The data gets loaded if the model hasn't been loaded already.

So if you have been paying attention, you may ask, so now we have data in the model, but we are binding to Items collection, not ViewModel

The DataContext for the page is set here in the constructor:

Therefore the data binding on the page, DataContext is equivalent to App.ViewModel and in App.xaml.cs defines ViewModel as MainViewModel.

So now we have data shown on the screen. Again, remember all this is out of the box code. They also give us a hint at how to navigate to a details page where the item id is passed to the details page so the detail data can be loaded.

The navigation is wired into the MainLongListSelector_SelectionChanged event. This event fires every time the user clicks on items in the list.

Things to note in this navigation:

If by chance an item with no data related to it is selected nothing happens
They are navigating to a page called DetailsPage.xaml, in the same directory as MainPage.xaml
A query string parameter called selectedItem is being populated with the SelectedItem's ID field of the LongListSelector, this is what the DetailsPage.xaml will use to look up the details data when the page is rendered, in the OnNavigatedTo event handler.

So we click on an item in the list and we go to that page, pretty simple, and we get all this for free by selecting the Databound Project type. There are other nice things they give us for free and a couple more are there just commented out (localized menu bar items for example), that we are not going to go into in this paper.

So this covers 2 of the 4 items I suggested:

Display data on a screen

Typically requires retrieving data from a persistence layer

Save data to a persistence layer
Manipulating the data on the screen
Navigating from screen to screen

So we still have saving data to the persistence level, these examples read the data from scripts every time the app is started. And we still need to be able to change the data and save it back to a persistence layer.

This is where the examples I found online also fell apart, they could show you how to display data that existed in a model, and maybe even change them a little, but none of the examples I could find showed you how to store data, maybe it was because I was looking in the wrong places (the internet) or because I wanted simple examples. I did find a lightweight tool called LexDb https://www.nuget.org/packages/Lex.Db/1.1.7.1) that was Win8 Phone compatible and fairly easy to understand. I looked around the internet and search for things like "Best Practice Win8 Phone database". You would be surprised how little useful results there are for that topic. Somehow I happened across this article from 2012 about LexDB, it was compatible with Win8 Phone and it was an object database, which was perfect for what I was working on since there wasn't any interaction with a true SQL relational db.

Install Lex.DB from NuGet using the install manager:

This installs all the pieces you need to use Lex.DB, creates the references and all that is left is the coding. So let us switch our example data from being loaded from script to being loaded into the Lex.DB database.

Since the database stores objects what we are going to do is just add some code to save the data after it gets loaded from code.

First create a place to store the instance of the database in memory. The App.xaml.cs is the best place for this since it is accessible for all the code.

In the global declarations of App.xaml.cs I stuck this code:

public static DbInstance _db = new DbInstance("ItemsDB");

To use that you need a using for Lex.DB in the top of the file

So here are the changes to App.xaml.cs

Now we are ready to save data which is loaded in from code using the LoadData() method:

Original code to load data from code.

Added code to check to see if the data was stored in the Lex.DB database, IsDataInDatabase() or if the data was loaded by code IsDataLoaded(), if not loaded in either it gets loaded from code using LoadData() method. If it is loaded, then the new code loads the data back in from the database (not the most efficient code because we load the data from the database every time we reload the Main page, but it shows the point without adding additional code to distract from the point of persisting the data). Also code was added to store the data in the database App.ViewModel.SaveData() when the user navigates away from the list, currently by clicking on one of the items in the list which fires the OnNavigatedFrom event.

Let's look in more detail at the SaveData() method:

Here we save the data to the Lex.DB in Table and put the App.ViewModel.Items values in there.

Then set the IsDataSavedInData flag for the other logic above.

So we can now put data in and retrieve data from the Lex.DB datastore on the phone. This is an important thing to note, the data is persisted to the phone. Closing the application or restarting the phone does not delete this data.

Now we need to show how to manipulate data and then store it in the database.

Probably the easiest way to demonstrate this is to put an edit button on the details page:

These are the changes required to create a button on the details page (DetailsPage), have it navigate to an edit page (DetailsPageEdit) and save the data changes and navigate back to the details page (DetailsPage)

Code Changes:

Changes Details Page

DetailsPage.xaml

Added button code:

DetailsPage.xaml.cs

Added code to implement the button click event from the xaml page:

This is pretty simple code to navigate to the page we are going to create in the next step.

Note: We are using a relative URI ("/DetailsPageEdit.xaml?selectedItem="…) and passing it in the current Item's ID

For simplicity we are just going to copy DetailsPage.xaml and DetailsPage.xaml.cs to be DetailsPageEdit.xaml and DetailsPageEdit.xaml.cs respectively. So these are not explicitly pages out of the box, but close. With the new files replace all occurances of DetailsPage with DetailsPageEdit.

DetailsPageEdit.xaml

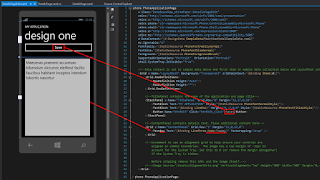

Change the display text on the button to Save, and change the TextBlock (display only) to a TextBox (edit). One other very important part that hasn't been adressed previouslly is that to get the save to happen correctly, basically it puts the changed text in the text box back into the entity, not just populating it for viewing.

DetailsPageEdit.xaml.cs

Just for simplicity we didn't change the button's name to save and it is still edit, so we are leveraging the same code in the button click event.

We are adding a line of code to implement the save, in box below:

Remove the Edit word from the Uri, when copied this link will be "/DetailsPageEdit.xaml…", if we don't change it the save button will just navigate back to itself and reload.

So there you have it, a simple example with very very little code actually written we show data on the screen retrieved from a data source (two actually, one from code and one from a database), navigate to a page to edit it and put the changes back in the database. Using these building blocks you can actually create a program that does something useful and saves the data so it can be used again.

Authors Bio: Kris Bultman - .Net Architect

Converted Mechanical Engineer who has been doing .NET Development since it was in Beta (yes October of 2000). He likes simple designs that do what they are supposed to are easy to understand and more importantly don't break. Relates a story from a fellow developer… "If it is hard you are probably doing it wrong". When not designing solutions for Ascendum Solutions (Cincinnati based software consulting) he can be found coaching pole vault in the spring, snow skiing in the winter and watching football and admittedly occasionally soccer and baseball the rest of the year. He is always interested in how software interacts with the world around it and how we can improve this interaction.
